RED V-RAPTOR XE RF MOUNT 8K 电影摄影机
V-RAPTOR XE 搭载了与 RED 旗舰机型 V-RAPTOR [X] 相同的 8K VV 全域快门传感器，但精简了部分高端功能与帧率选项。像素数为 3540 万，其尺寸为 21.60mm*40.96mm，对角线为 46.31mm。它是一款更简洁、更高效的工具：在保留 RED 标志性影像质感的同时，降低了成本、功耗，并缩短了开机时间。该机配备的带触控液晶屏的 eND PL 卡口也广受好评，不仅操控更流畅，还具备广泛的第三方设备兼容性。
性能方面，这款电影机最高支持 8K（8192*4320） 120P RAW 内录，同时支持 4K 240P、2K 480P 升格，拍摄格式可选 16bit R3D RAW 或 ProRes RAW，拍摄 1 小时视频大约需要 1123GB 存储空间，动态范围可达 17 档。

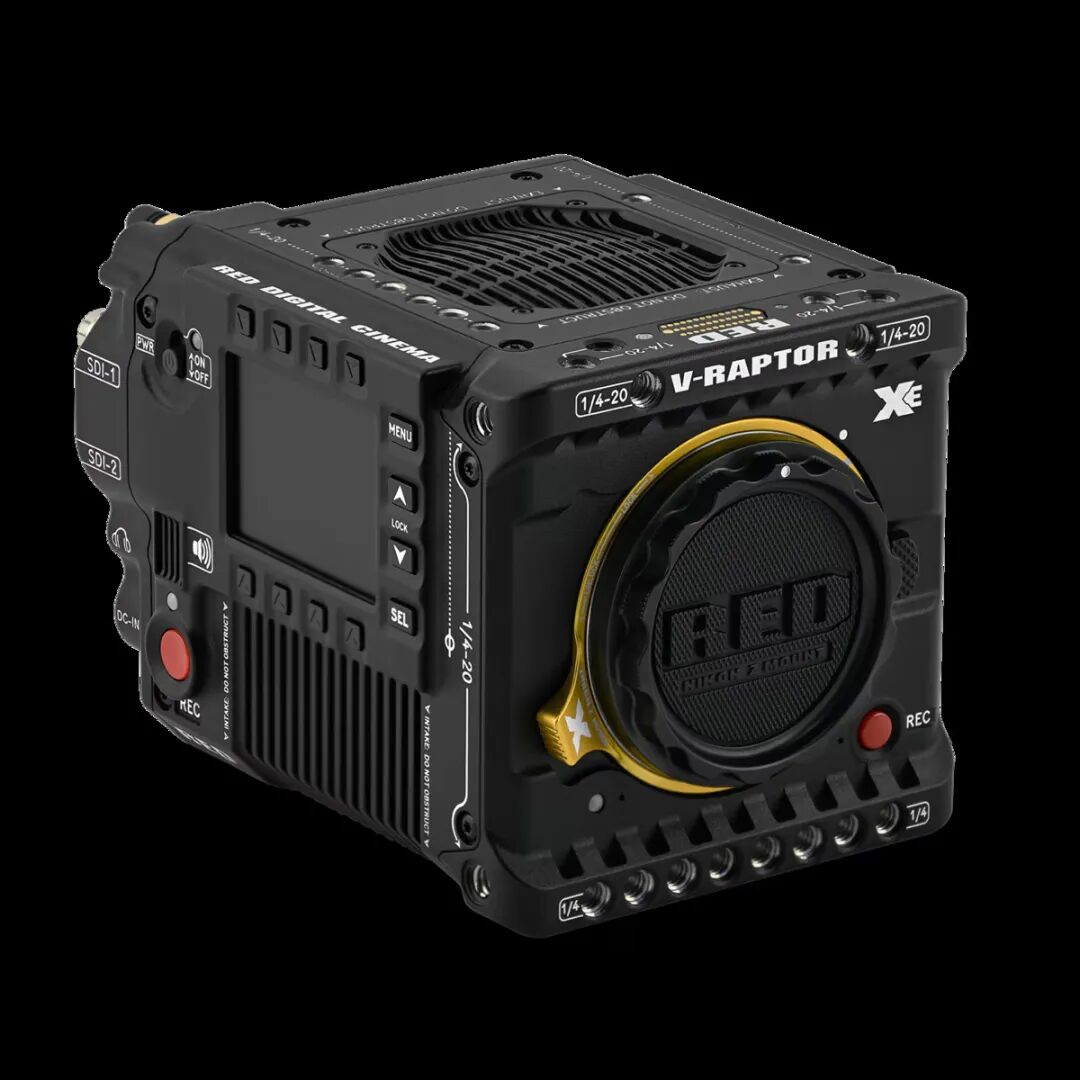

这款电影机还可选尼康 Z 卡口、佳能 RF 卡口，摄影师可根据自身拥有 / 租赁的镜头群自行选择喜好的卡口，RF 卡口版与普通的 RED 电影机别无二致，而 Z 卡口版则将卡口一圈的保护环换成了尼康元素满满的金色。

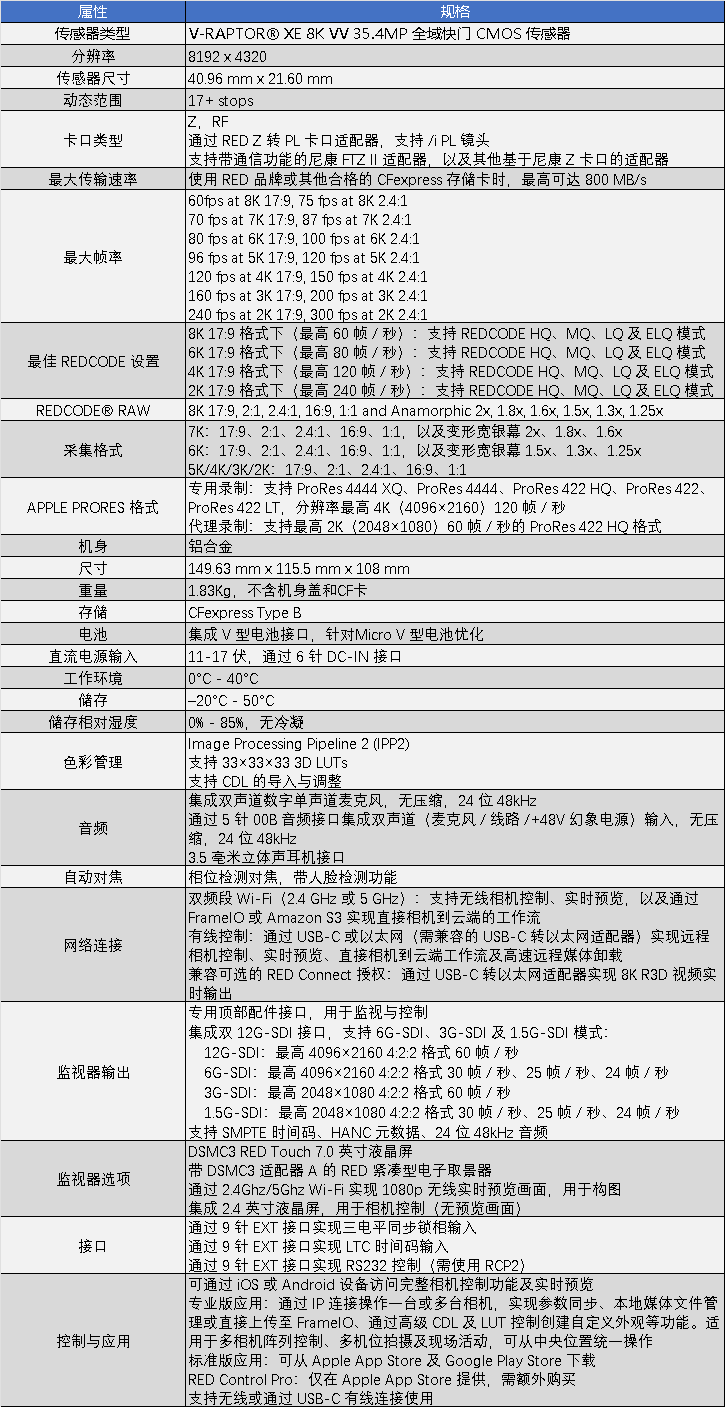

V-RAPTOR XE RF Mount ®
| SENSOR TYPE | V-RAPTOR XE 8K VV 35.4MP Global Shutter CMOS® |
|---|---|
| EFFECTIVE PIXELS | 8192 x 4320 |
| SENSOR SIZE | 40.96 mm x 21.60 mm (Diagonal: 46.31 mm) |
| DYNAMIC RANGE | 17+ stops |
| MOUNT TYPE | Integrated locking RF mount with electronic communication Supports /i PL lenses with RED RF to PL Adapters Supports Canon EF Adapter with communication and other adapters based on the RF mount |
| MAX DATA RATES | Up to 800 MB/s using RED branded or other qualified CFexpress media cards1 |
| REDCODE® RAW MAX frame RATES | 60fps at 8K 17:9, 75 fps at 8K 2.4:1 70 fps at 7K 17:9, 87 fps at 7K 2.4:1 80 fps at 6K 17:9, 100 fps at 6K 2.4:1 96 fps at 5K 17:9, 120 fps at 5K 2.4:1 120 fps at 4K 17:9, 150 fps at 4K 2.4:1 160 fps at 3K 17:9, 200 fps at 3K 2.4:1 240 fps at 2K 17:9, 300 fps at 2K 2.4:1 |
| BEST AVAILABLE REDCODE® SETTINGS | REDCODE HQ, MQ, LQ, and ELQ at 8K 17:9 up to 60 fps REDCODE HQ, MQ, LQ, and ELQ at 6K 17:9 up to 80 fps REDCODE HQ, MQ, LQ, and ELQ at 4K 17:9 up to 120 fps REDCODE HQ, MQ, LQ, and ELQ at 2K 17:9 up to 240 fps |
| REDCODE® RAW ACQUISITION FORMATS | 8K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x 7K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x 6K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x 5K 17:9, 2:1, 2.4:1, 16:9, 1:1 4K 17:9, 2:1, 2.4:1, 16:9, 1:1 3K 17:9, 2:1, 2.4:1, 16:9, 1:1 2K 17:9, 2:1, 2.4:1, 16:9, 1:1 |
| APPLE PRORES | Dedicated recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT at resolutions up to 4K (4096x2160) 120P Proxy recording available up to ProRes 422 HQ in 2K (2048 x 1080) up to 60P. |
| CONSTRUCTION | Aluminum Alloy |
| DIMENSIONS | 149.63 mm x 115.5 mm x 108 mm / 5.9 in. x 4.5 in. x 4.3 in. (LxWxH, largest fixed dims.) |
| WEIGHT | 4.03 lbs / 1.83 kg (without body cap and CFexpress card) |
| MEDIA TYPE | CFexpress Type B |
| BATTERY TYPE | Integrated V-Lock battery interface optimized for Micro V-Lock Batteries1 |
| DC POWER INPUT | 11-17 V via 6-Pin DC-IN |
| OPERATING TEMPERATURE | 0°C to 40°C (32°F to 104°F) |
| STORAGE TEMPERATURE | –20°C to 50°C (–4°F to 122°F) |
| STORAGE RELATIVE HUMIDITY | 0% to 85% non-condensing |
| COLOR MANAGEMENT | Image Processing Pipeline 2 (IPP2) Supports 33×33×33 3D LUTs Supports import and adjustment of CDLs |
| AUDIO | Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz Integrated dual channel (mic/line/+48V) input via 5-Pin 00B Audio Port, uncompressed, 24-bit 48 kHz 3.5mm stereo headphone port |
| AUTOFOCUS | Phase Detect with Face Detection |
| IP CONNECTED | Dual band Wi-Fi (2.4 GHz or 5 GHz) for wireless camera control, live preview, and direct Camera to Cloud workflow via frameIO or Amazon S3 Wired control via USB-C or Ethernet (compatible USB-C to Ethernet adapter1 required) for remote camera control, live preview, direct Camera to Cloud workflow and high speed remote media offload Compatible with optional RED Connect license for live 8K R3D video over USB-C to Ethernet adapter |
| MonITOR OUTPUTS | Proprietary Top Accessory Port for Monitoring and Control Integrated dual 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes 12G-SDI: Up to 4096 x 2160 4:2:2 for 60p 6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p 3G-SDI: Up to 2048 x 1080 4:2:2 for 60p 1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p SMPTE Timecode, HANC metadata, 24-bit 48 kHz Audio |
| MonITOR OPTIONS | DSMC3 RED Touch 7.0” LCD RED Compact EVF with DSMC3 Adapter A Wireless 1080p live preview video feed via 2.4Ghz/5Ghz Wi-Fi for framing Integrated 2.4" LCD for camera control (no preview video) |
| ADDITIonAL I/O | Tri-Level Genlock Input via 9-Pin EXT LTC Timecode Input via 9-Pin EXT RS232 CTRL (using RCP2) via 9-Pin EXT |
| RED ConTROL & RED ConTROL PRO | Access full camera controls and live preview from iOS or Android devices Pro App: Operate one or multiple cameras over an IP connection to synchronize settings, manage media files locally or upload directly to frameIO, develop custom looks with advanced CDL and LUT controls, and more. Ideal for control of multi-camera arrays, multi-cam shoots, and live events, all from one central location. Standard app available from the Apple App Store and Google Play Store. RED Control Pro available via Apple App store only and requires additional purchase. RED Control works wirelessly or wired via USB-C |
机器包含：
V-RAPTOR XE RF Mount Camera System
1x DSMC3 RED Touch 7.0 寸监视器
1x RED V-RAPTOR RF to PL Adapter w/ Electronic ND Filter Adapter Pack 转接环、ND滤镜
1x KOMODO Outrigger Handle 手柄
2 Year Standard Warranty 2年质保
